The Department of Defense Precision Fires and Mortars (PM PFM) organization manages several sizes and variants of Mortar weapon systems. These weapon system products include special kits and standalone hand held electronic devices used to operate these devices. The systems range in size from small man-portable versions like the 60 mm and 80 mm mortars to the 120 mm vehicle mounted and vehicle towed mortar systems. PM Precision Fires and Mortars was formerly known as Product Manager Guided Precision Munitions and Mortar Systems (GPM2S).
Product Manager for Precision Fires and Mortars (PM PFM)
Accelerated Precision Mortar Initiative (APMI)
The Accelerated Precision Mortar Initiative (APMI) is precision mortar which uses Global Positioning System (GPS) technology. The XM395 GPS guided 120 mm mortar round is programmed before it’s fired.
APMI Details:
“APMI XM395, cartridge uses a standard M934 high-explosive 120 mm projectile body. In the nose, a GPS receiver and computer controlled aerodynamic directional fins keep the round on its programmed trajectory. Folding fins in the tail provide stability. The APMI also has a multi-functional fuse, which allows the round to be programmed to explode in the air, once it hits a hard surface or after it penetrates inside a target.” According to Peter Burke, PEO Ammunition’s deputy product manager, Guided Precision Munitions and Mortar Systems.
The GPS coordinates are input from the ballistic computers with the addition of a Precision Lightweight Universal Mortar Setter System (PLUMSS). The PLUMSS fire control interface unit is an indirect fire control system that is capable of programming the precision guided 120 mm mortar cartridge which is used with 120 mm smooth-bore, mortar systems such as the ground mounted and Stryker mounted 120 mm mortar systems.
This High Explosive Guided Mortar (HEGM) cartridge gives soldiers in Brigade Combat Teams (BCTs), and Special Operations Forces (SOF) Non-Line-of-Sight (NLOS) capability on the battlefields. It’s programmable by the M95 Mortar Fire Control System or M150 MFCS-D or M32 Lightweight Handheld Mortar Ballistic Computer (LHMBC).
The NSN for the XM395 120 mm High Explosive Guided Mortar (HEGM) cartridge is 1315-01-590-3308.
The NSN for the XM701 Precision Lightweight Universal Mortar Setter System (PLUMSS) is 1290-01-586-5780.
Precision Guidance Kit (PGK) XM1156/M1156

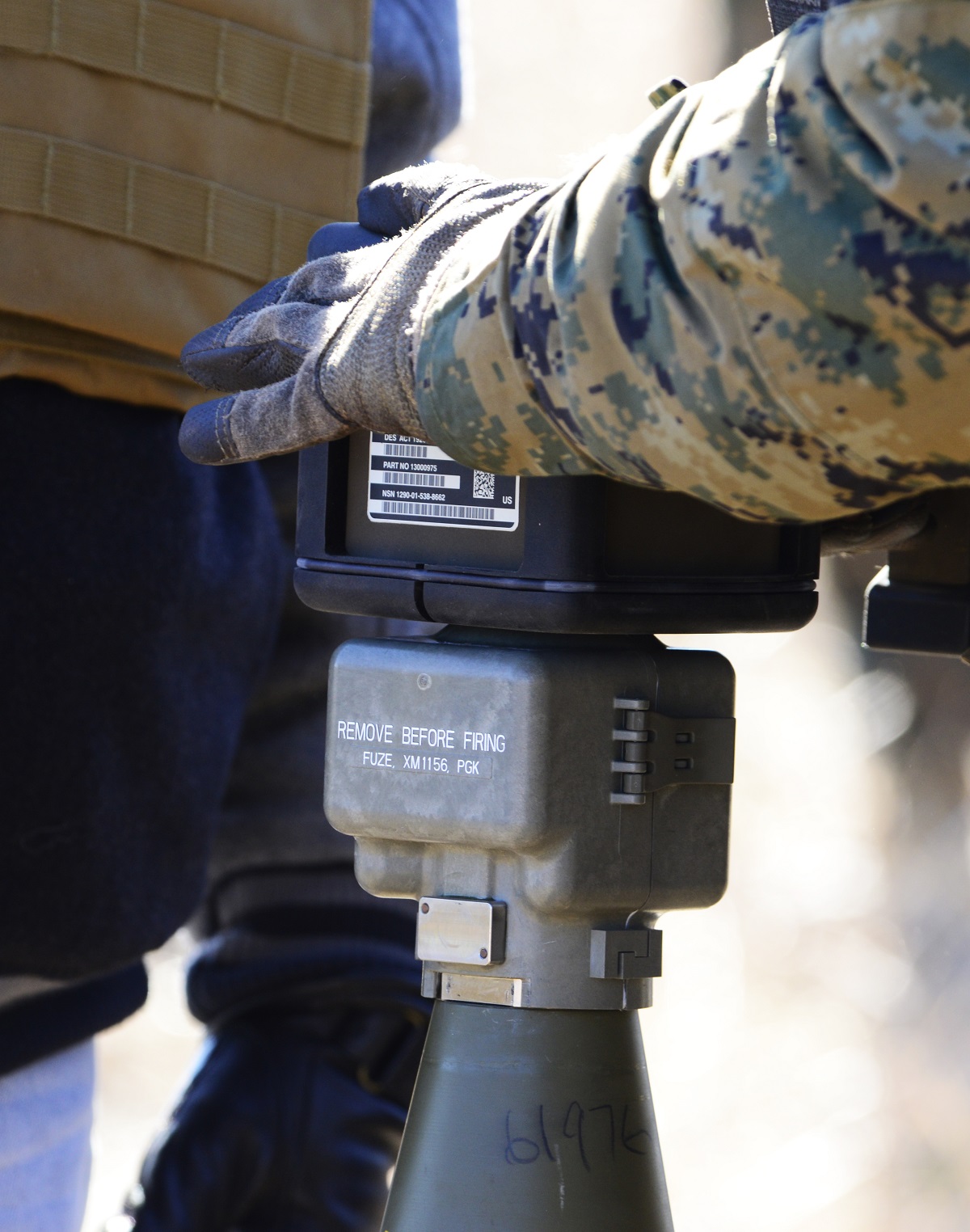

The Precision Guidance Kit (PGK) is a precision guidance fuze that contains Global Positioning System (GPS) guidance for more accurate result. The PGK currently has two Department of Defense Identification Codes (DODIC), NA28 NSN 1390-01-579-0413 for the XM1156 and DODIC NA29 NSN 1390-01-617-0269 for the newer M1156. The PGK currently being procured has the NA29 DODIC. It is adaptable to existing stockpile of M795, M795IM and M549A1 high explosive 155 mm projectiles. Flight data is inductively loaded into PGK using the Enhanced Portable Inductive Artillery Fuze Setter (EPIAFS)
The Product Manager Precision Fires and Mortars several years ago performed a bottom-up technique known as “clean-sheeting” to better understand the cost of the M1156 Precision Guidance Kit (PGK) and to identify opportunities for cost savings. We may touch on this in future articles. One of the initial contract that was awarded to for production of the Accelerated Precision Mortar Initiative (APMI) XM395 was sole source to Alliant Techsystems, ATK (Now owned by Northrop Grumman) contract number W15QKN-10-C-0059.
Mortar Systems
The PM Precision Fires and Mortars product line includes the entire Mortar System everything except the ammo. The mortar systems are the 60 mm, 81 mm, 120 mm towed and mounted mortars. The PM PFM also manages associated special kits and standalone hand held electronic devices used to operate these systems.
The majority of the basic Mortar ammunition used by the mortar systems is handled by the Conventional Ammunition division. They manage items such as High explosive mortar ammunition, Illumination mortar ammunition, Smoke mortar ammunition and Training mortar ammunition.
Some of these mortar systems listed below have similar repair/replace parts such as the Sight Unit and the Bipods.
Lightweight 60 mm Mortar System
M224 – 60 mm Mortar weapon system (older model)
NSN for M224 mortar weapon system 1010-01-020-5626
Line Item Number (LIN) for the 60 mm M224 weapon system is M67939
M224A1 – 60 mm Mortar weapon system (newer model)
NSN for M224A1 mortar weapon system 1010-01-586-2874
Line Item Number (LIN) for the 60 mm M224A1 weapon system is M67939
Physical Characteristics – 60 mm Mortar weapon system
M224A1 in firing position in conventional mode 37.9 lbs
M224A1 in firing position in handheld mode 19.6 lbs
60 mm Lightweight cannon 13 lbs
M170A1 Bipod 12.8 lbs
M7A1 Lightweight baseplate 9.2 lbs
M8 Baseplate 3.7 lbs
M67 Sight unit 2.9 lbs

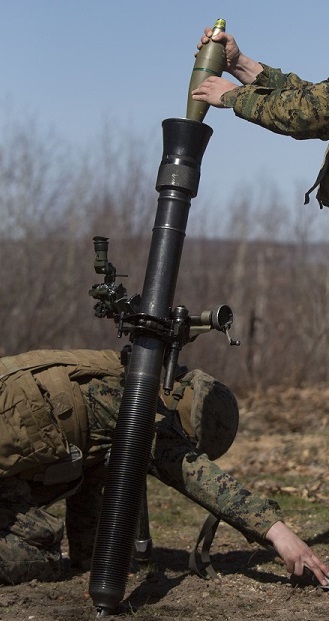

Lightweight 81 mm Mortar System
M252 – 81 mm Mortar weapon system (older model)
NSN for M252 81 mm mortar weapon system 1015-01-164-6651
Line Item Number (LIN) for the M252 81 mm weapon system is M02114
M252A1 – 81 mm Mortar weapon system (newer model)
NSN for M252A1 mortar weapon system 1015-01-586-2135
Line Item Number (LIN) for the M252A1 mortar weapon system is M02114
Physical Characteristics M252A1 – 81 mm Mortar weapon system
M252A1 in Firing position 74.9 lbs
81 mm Cannon 31 lbs
M177A1 Bipod 18 lbs
M3A1 Lightweight baseplate 23 lbs
M67 Sight unit 2.9 lbs
Carrier Mounted and Towed Mortar System

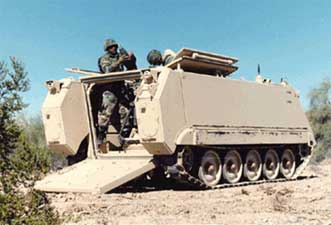

M121 – 120 mm Carrier mounted mortar system
NSN for 120 mm M121 carrier mounted mortar system is 1015-01-292-3801
Line Item Number (LIN) for the M121 carrier mounted mortar system is M68405
Physical Characteristics – M121 – 120mm Carrier mounted mortar system
M121 Mortar system 717 lbs with trailer
M121 Mortar system 318 lbs in firing position
M298 Cannon weight 110 lbs
M298 Cannon length 69 in
M190 Bipod assembly weight 70 lbs.
M9 Mortar baseplate weight 136 lbs.
M64A1 Sight unit weight 2.5 lbs.
M120A1 – 120 mm Towed mortar system
M120A1 – 120 mm Towed mortar system
NSN for 120 mm M120A1 Towed mortar system is 1015-01-554-0749
Line Item Number (LIN) for the M120A1 Towed mortar system is M68326
Physical Characteristics – M120A1 – 120mm Towed mortar system
M121 Mortar system 717 lbs with trailer
M121 Mortar system 318 lbs in firing position
M298 Cannon weight 110 lbs
M298 Cannon length 69 inches
M190 Bipod assembly weight 70 lbs
M9 Mortar baseplate weight 136 lbs
M64A1 Sight unit weight 2.5 lbs
M326 Mortar Stowage Kit (Quick Stow)
The M326 Mortar Stowage Kit (Quick Stow) is a powered device allowing the 120 mm mortar to be carried as single unit, using a support strut holding the mortar tube, base plate and bipod solidly together.
M326 Mortar Stowage Kit (Quick Stow)
NSN for M326 Mortar stowage kit is 2590-01-551-7979
Line Item Number (LIN) for M326 Mortar stowage kit isH39473
M313 Mortar System Training Insert
The M313 Mortar system training insert is used with the M120/M121 mortar systems replacing the M303 insert. It is a sub-caliber insert used to reduce life cycle training costs of the M120/M121 Battalion Mortar.
NSN for M313 Mortar system training insert is 1015-01-521-6071
Mortar Fire Control System (MFCS)
The Mortar Fire Control System (MFCS) includes an entire suite of electronic devices used with the mortar systems. Provides control using digital type devices and software: Advanced Field Artillery Tactical Data System (AFATDS); Hardware – Pointing device: (TALIN datasheet), Commander’s interface, Gunner’s display, Driver’s display, Precision Lightweight GPS Receiver (PLGR), Power distribution assembly and cables.
M95 – Mortar Fire Control System (MFCS)
NSN for M95 Mortar Fire Control System (MFCS) is 1230-01-503-7784
Line Item Number (LIN) for M95 Mortar Fire Control System (MFCS) is F83625
M96 – Mortar Fire Control System (MFCS)
NSN for M96 Mortar Fire Control System (MFCS) is 1230-01-503-7783
Line Item Number (LIN) for M96 Mortar Fire Control System (MFCS) is F83693
M150 Mortar Fire Control System Dismounted (MFCS-D)
The M150 Mortar Fire Control System Dismounted (MFCS-D) is used with the M120 Towed Mortar System. The M150 integrates with the M1101 trailer and the M326 Mortar Stowage Kit (Quick Stow).
NSN for M150 Gun MFCS-D is 1230-01-560-1027
LIN for M150 Gun MFCS-D is F55682
NSN for M151 Fire Direction Center (FDC) MFCS-D is 1230-01-560-1028
LIN for M151 Fire Direction Center (FDC) MFCS-D is M53619
Lightweight Handheld Mortar Ballistic Computer (LHMBC)
The M32 Lightweight Handheld Mortar Ballistic Computer (LHMBC) is a small Ruggedized Personal Digital Assistant (R-PDA) computer with an integrated tactical modem (TacLink), GPS system tied together using U.S. Army Armament Research, Development and Engineering Center (ARDEC) fire control software. The LHMBC is used with the 60mm, 81mm, and 120mm dismounted mortar systems and can also be used as a backup device for the Mortar Fire Control System (MFCS) in Mortar Carrier and Stryker operations. The LHMBC replaces the M23 Mortar Ballistic Computer.
M32A1 – Lightweight Handheld Mortar Ballistic Computer (LHMBC) NSN is 1220-01-646-0010
Line Item Number (LIN) for Lightweight Handheld Mortar Ballistic Computer (LHMBC) is M32043
M32 – Lightweight Handheld Mortar Ballistic Computer (LHMBC) (older models)
RPDA-57 System: 1220-01-554-0753
RPDA-5500 System: 7021-01-521-1611
Doing business with PM Precision Fires and Mortars (PM PFM):
Part of doing business with the military, selling products you manufacture starts at knowing what, why and how they buy. Much of what DOD buys is part of something else, a higher system or end item. The items above are mostly end items and in order to keep them operational, sometimes over the span of 50 years they need a lot of parts. The more knowledge you have on the end items and who uses them will lead your company to better and bigger business opportunities with the Department of Defense.
In addition although a single weapon system may have initially been produced by one prime contractor many other smaller contractors get involved especially when the item currently in use, needs repairs or updating. One weapon system could have 100s or thousands of individual parts that are needed to keep the item in operation – These are known as spares and can be great business opportunities for any government contractor.
Product Manager for Precision Fires and Mortars (PM PFM) Office Details:
Business opportunities for Product Manager for Precision Fires and Mortars (PM PFM) will typically be posted by Army Contracting Command, New Jersey (ACC – NJ) on behalf of the organization PM Precision Fires and Mortars under office code W15QKN.
Army Contracting Command, New Jersey address:
ACC – NJ (W15QKN)
Building 10 Phipps Road
Picatinny Arsenal, NJ 07806-5000
The phone number for the PM Precision Fires and Mortars is 973-724-4428
PM Combat Ammunition Systems (PM CAS) is the head organization for PM Precision Fires and Mortars.
